YOLOv1 Loss Function Walkthrough: Regression for All

An explanation of how YOLOv1 measures the correctness of its object detection and classification predictions Muhammad Ardi Putra January 5, 202625 min read Photo by Bozhin Karaivanov on Unsplash

Introduction

In my previous article I explained how YOLOv1 works and how to construct the architecture from scratch with PyTorch. In today’s article, I am going to focus on the loss function used to train the model. I highly recommend you read my previous YOLOv1 article before reading this one as it covers lots of fundamentals you need to know. Click on the link at reference number [1] to get there.

What’s a Loss Function?

I believe we all already know that loss function is an extremely important component in deep learning (and also machine learning), where it is used to evaluate how good our model is in predicting the ground truth. Generally speaking, a loss function should be able to take two input values, namely the target and the prediction made by the model. This function is going to return a large value whenever the prediction is far from the ground truth. Conversely, the loss value will be small whenever the model successfully gives a prediction close to the target. Normally, a model is used for either classification or regression only. However, YOLOv1 is a bit special as it incorporates a classification task — to classify the detected objects, whereas the objects themselves will be enclosed with bounding boxes which the coordinates and the sizes are determined using continuous numbers — hence a regression task. We typically use cross entropy loss when dealing with classification task, and for regression we can use something like MAE, MSE, SSE, or RMSE. But since the prediction made by YOLOv1 comprises both classification and regression at once, we need to create a custom loss function to accommodate both tasks. And here’s where things start to get interesting. Learn this step by step with the interactive AI Engineer roadmap. ···

Breaking Down the Components

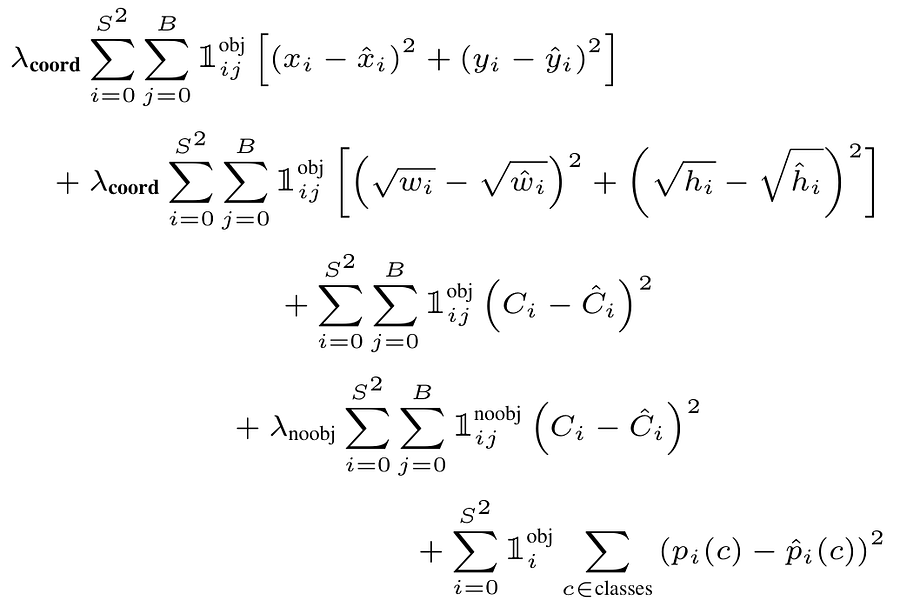

Now let’s have a look at the loss function itself. Below is what it looks like according to the original YOLOv1 paper [2]. Figure 1. The loss function of YOLOv1 [2]. Yes, the above equation looks scary at glance, and that’s exactly what I felt when I first saw it. But don’t worry as you will find this equation straightforward as we get deeper into it. I’ll definitely try my best to explain everything in simple words. Here you can see that the loss function basically consists of 5 rows. Now let’s get into each of them one by one.

Row #1: Midpoint Loss

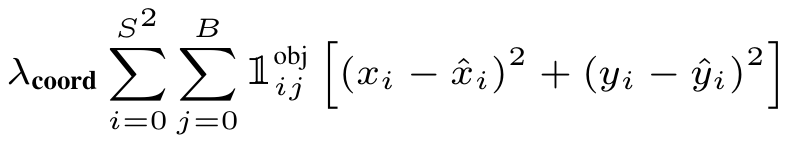

Figure 2. The part for calculating the midpoint coordinate prediction loss [2]. The first term of the loss function focuses on evaluating the object midpoint coordinate prediction. You can see in Figure 2 above that what it essentially does is simply comparing the predicted midpoint (x_hat , y_hat) with the corresponding target midpoint (x, y) by subtraction before summing the squared results of the x and the y parts. We do this iteratively for the two predicted bounding boxes (B) within all cells (S) and sum the error values from all of them. Or in other words, what we basically do here is to compute the SSE (Sum of Squared Errors) of the coordinate predictions. Assuming that we use the default YOLOv1 configuration (i.e., S =7 and B =2), we will have the first and the second sigma iterates 49 and 2 times, respectively. Additionally, the 1^obj variable you see here is a binary mask, in which the value would be 1 whenever there is an object midpoint within the corresponding cell in the ground truth. But if there is no object midpoint contained inside, then the value would be 0 instead, which cancels out all operations within that cell because there is indeed nothing to predict.

Row #2: Size Loss

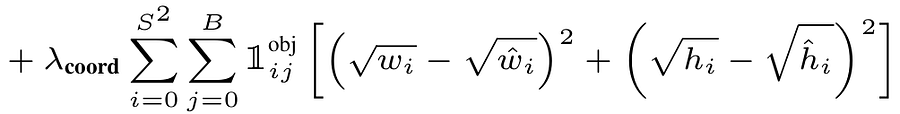

Figure 3. The part for calculating the bounding box size prediction loss [2]. The focus of the second row is to evaluate the correctness of the bounding box size. I believe the above variables are pretty straightforward: w denotes the width and h denotes the height, where the ones with hats are the predictions made by the model. If you take a closer look at this row, you’ll notice that this is basically the same as the previous one, except that here we take the square root of the variables first before doing the remaining computation. The use of square root is actually a very clever idea. Naturally, if we directly compute the variables as they are (without square root), the same inaccuracy on small bounding box would be weighted the same as that on large bounding box. This is actually not a good thing because the same deviation in the number of pixels on small box will visually appear more misaligned from the ground truth than that of the larger box. Look at Figure 4 below to better understand this idea. Here you can see that even though the deviation of both cases are 60 pixels on the height axis, but on the smaller bounding box the error appears worse. This is actually because in the case of the smaller box the deviation of 60 pixels is 75% of the actual object height, whereas on the larger box it only deviates 25% from the target height. Figure 4. The same deviation in the number of pixels will appear worse on small object than that of the larger one [3]. By taking the square root of w and h , we will have inaccuracy in smaller box penalized more than that in the larger one. Let’s do a little bit of math to prove this. To make things simpler, I put the two examples in Figure 4 to Gemini and let it compute the height prediction error based on the equation in Figure 3. You can see the result below that the error of the small bounding box prediction is greater than that of the large bounding box (8.349 vs 3.345). Figure 5. Proof that the square root operation allows us to give higher penalty for inaccuracy on smaller box [3].

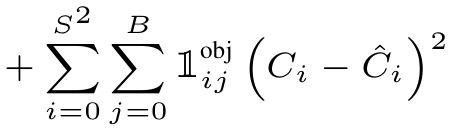

Row #3: Object Loss

Figure 6. The part for computing the object loss [2]. Moving on to the third row, this part of the YOLOv1 loss function is used to measure how confident the model is in predicting whether or not there is an object within a cell. Whenever an object is present in the ground truth, we need to set C to the IoU of the bounding box. Assuming that the predicted box perfectly matches with the target box, we essentially want our model to produce C_hat close to 1. But if the predicted box is not quite accurate, say it has an IoU of 0.8, then we expect our model to produce C_hat close to 0.8 as well. Just think of it like this: if the bounding box itself is inaccurate, then we should expect our model to know that the object does not perfectly present within that box. Meanwhile, whenever an object is indeed not present in the ground truth, then the variable C should be exactly 0. Again, we then sum all the squared difference between C and C_hat across all predictions made throughout the entire image to obtain the object loss of a single image. It is worth noting that C_hat is designed to reflect two things simultaneously: the probability that the object being there (a.k.a. objectness) and the accuracy of the bounding box (IoU). This is essentially the reason that we define ground truth C as the multiplication of the objectness and the IoU as mentioned in the paper. By doing so, we implicitly ask the model to give C_hat , whose value incorporates both components. Figure 7. Bounding box confidence is defined as the multiplication of objectness and IoU [2]. As a refresher, IoU is a metric we commonly use to measure how good our bounding box prediction is compared to the ground truth in terms of area coverage. The way to compute IoU is simply to take the ratio of the intersection of the target and predicted bounding boxes to the union of them, hence the name: Intersection over Union. Figure 8. An illustration of how to compute IoU [3]. The IoU of two bounding boxes that perfectly overlap each other is 1, whereas if two bounding boxes do not overlap at all then the IoU would be 0.

Row #4: No Object Loss

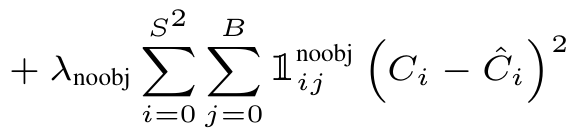

Figure 9. The so-called no-object loss term in the YOLOv1 loss function [2]. The so-called no-object loss is quite unique. Despite having a similar computation as the object loss in the third row, the binary mask 1^noobj causes this part to work something like the inverse of the object loss. This is because the binary mask value would be 1 if there is no object midpoint present within a cell in the ground truth. Otherwise, if an object midpoint is present, then the binary mask would be 0, causing the remaining operations for that single cell to be canceled out. So in short, this row is going to return a non-zero number whenever there is no object in the ground truth but is predicted as containing an object midpoint.

Row #5: Classification Loss

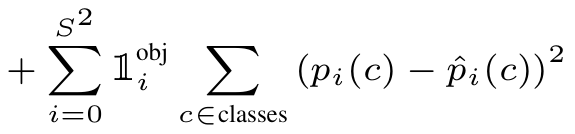

Figure 10. The part for computing object classification loss [2]. The last row in the YOLOv1 loss function is the classification loss. This part of the loss function is the most straightforward if I were to say, because what we essentially do here is just to compare the actual and the predicted class, which is similar to the one in the typical multi-class classification task. However, what you need to keep in mind here is that we still use the same regression loss (i.e., SSE) to compute the error. It is mentioned in the paper that the authors decided to use this regression loss for both the regression and the classification parts for the sake of simplicity.

Adjustable Parameters

Notice that I actually haven’t discussed the λ_coord and λ_noobj parameters. The former is used to give more weight to the bounding box prediction, which is why it is applied to the first and the second row of the loss function. You can go back to Figure 1 to verify this. The λ_coord parameter by default is set to a large value (i.e., 5) because we want our model to focus on the correctness of the bounding box creation. So, any small inaccuracy in the xywh prediction will be penalized 5 times larger than what it should be. Meanwhile, λ_noobj is used to control the no-object loss , i.e., the one in the fourth row in the loss function. It is mentioned in the paper that the authors set a default value of 0.5 for this parameter, which basically causes the no-object loss part not to be weighted as much. This is basically because in the case of object detection the number of objects is typically much less than the total number of cells, causing the majority of the cells to not contain an object. Thus, if we don’t give a small multiplier to the term, the no-object loss will give a very high contribution to the total loss, which in fact is not that important. By setting λ_noobj to a small number, we can suppress the contribution of this loss. ···

Code Implementation

I do acknowledge that our previous discussion was very mathy. Don’t worry if you haven’t grasped the entire idea of the loss function just yet. I believe you’ll eventually understand once we get into the code implementation. So now, let’s start the code by importing the required modules as shown in Codeblock 1 below. python

# Codeblock 1
import torch
import torch.nn as nn

The IoU Function

Before we get into the YOLOv1 loss, we will first create a helper to calculate IoU, which will be used inside the main YOLOv1 function. Look at the Codeblock 2 below to see how I implement it. python

# Codeblock 2
def intersection_over_union(boxes_targets, boxes_predictions):

    box2_x1 = boxes_targets[..., 0:1] - boxes_targets[..., 2:3] / 2
    box2_y1 = boxes_targets[..., 1:2] - boxes_targets[..., 3:4] / 2
    box2_x2 = boxes_targets[..., 0:1] + boxes_targets[..., 2:3] / 2
    box2_y2 = boxes_targets[..., 1:2] + boxes_targets[..., 3:4] / 2

    box1_x1 = boxes_predictions[..., 0:1] - boxes_predictions[..., 2:3] / 2
    box1_y1 = boxes_predictions[..., 1:2] - boxes_predictions[..., 3:4] / 2
    box1_x2 = boxes_predictions[..., 0:1] + boxes_predictions[..., 2:3] / 2
    box1_y2 = boxes_predictions[..., 1:2] + boxes_predictions[..., 3:4] / 2

    x1 = torch.max(box1_x1, box2_x1)
    y1 = torch.max(box1_y1, box2_y1)
    x2 = torch.min(box1_x2, box2_x2)
    y2 = torch.min(box1_y2, box2_y2)

    intersection = (x2 - x1).clamp(0) * (y2 - y1).clamp(0)    #(1)

    box1_area = torch.abs((box1_x2 - box1_x1) * (box1_y2 - box1_y1))
    box2_area = torch.abs((box2_x2 - box2_x1) * (box2_y2 - box2_y1))

    union = box1_area + box2_area - intersection + 1e-6       #(2)

    iou = intersection / union    #(3)

    return iou

The intersection_over_union() function above works by taking two input parameters, namely the ground truth (boxes_targets) and the predicted bounding boxes (boxes_predictions). These two inputs are basically arrays of length 4, storing the x , y , w , and h values. Note that x and y are the coordinate of the box midpoint, not the top-left corner. The bounding box information is then extracted so that we can compute the intersection (#(1)) and the union (#(2)). We can finally obtain the IoU using the code at line #(3). In addition to line #(2), here we also need to add a very small value at the end of the operation (1e-6 = 0.000001). This number is useful to prevent division-by-zero error in the case when the area of the predicted bounding box is 0 for some reasons. Now let’s run the intersection_over_union() function we just created on several test cases in order to check if it works properly. The three examples in Figure 11 below show intersections with high, medium, and low IoU (from left to right, respectively). Figure 11. Bounding box with different overlaps [3]. All the boxes you see here have the size of 200×200 px, and what makes the three cases different is only their area of the intersections. If you take a closer look at the Codeblock 3 below, you will see that the predicted boxes (pred_{0,1,2}) are shifted by 20, 100, and 180 pixels from their respective targets (target_{0,1,2}) along both the horizontal and vertical axes. python

# Codeblock 3
target_0 = torch.tensor([[0., 0., 200., 200.]])
pred_0   = torch.tensor([[20., 20., 200., 200.]])
iou_0    = intersection_over_union(target_0, pred_0)
print('iou_0:', iou_0)

target_1 = torch.tensor([[0., 0., 200., 200.]])
pred_1   = torch.tensor([[100., 100., 200., 200.]])
iou_1    = intersection_over_union(target_1, pred_1)
print('iou_1:', iou_1)

target_2 = torch.tensor([[0., 0., 200., 200.]])
pred_2   = torch.tensor([[180., 180., 200., 200.]])
iou_2    = intersection_over_union(target_2, pred_2)
print('iou_2:', iou_2)

As the above code is run, you can see that our example on the left has the highest IoU of 0.6807, followed by the one in the middle and the one on the right with the scores of 0.1429 and 0.0050, a trend that is exactly what we expected earlier. This essentially proves that our intersection_over_union() function works well. python

# Codeblock 3 Output
iou_0: tensor([[0.6807]])
iou_1: tensor([[0.1429]])
iou_2: tensor([[0.0050]])

The YOLOv1 Loss Function

There is actually another thing we need to do before creating the loss function, namely instantiating an nn.MSELoss instance which will help us compute the error values across all cells. As the name suggests, this function by default will compute MSE (Mean Squared Error). Since we want the error value to be summed instead of averaged, we need to set the reduction parameter to sum as shown in Codeblock 4 below. Next, we initialize the lambda_coord, lambda_noobj, S, B, and C parameters, which in this case I set all of them to their default values mentioned in the original paper. Here I also initialize the BATCH_SIZE parameter which indicates the number of samples we are going to process in a single forward pass. python

# Codeblock 4
sse = nn.MSELoss(reduction="sum")

lambda_coord = 5
lambda_noobj = 0.5

S = 7
B = 2
C = 20

BATCH_SIZE = 1

Alright, as all pre-requisite variables have been initialized, now let’s actually define the loss() function for the YOLOv1 model. This function is quite long, so I decided to break it down into several parts. Just ensure that everything is placed within the same cell if you want to try running this code on your own notebook. You can see in Codeblock 5a below that this function takes two input arguments: target and prediction (#(1)). Remember that originally the output of YOLOv1 (the prediction) is a long single dimensional tensor of length 1470, whereas the length of the target tensor is 1225. What we need to do first inside the loss() function is to reshape them into 7×7×30 (#(3)) and 7×7×25 (#(2)), respectively, so that we can process the information contained in both tensors easily. python

# Codeblock 5a
def loss(target, prediction):    #(1)

    target = target.reshape(-1, S, S, C+5)                #(2)
    prediction = prediction.reshape(-1, S, S, C+B*5)      #(3)

    obj = target[..., 20].unsqueeze(3)      #(4)
    noobj = 1 - obj                         #(5)

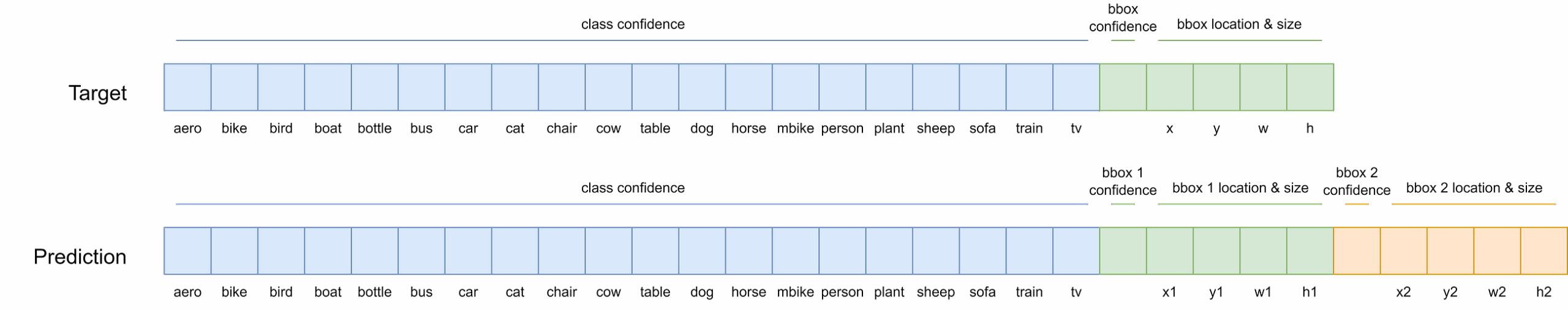

Next, the code at lines #(4) and #(5) are just how we implement the 1^obj and 1^noobj binary masks. At line #(4) we take the value at index 20 from the target tensor and store it in obj variable. Index 20 itself corresponds to the bounding box confidence (see Figure 12), which if there is an object midpoint within the cell, then the value of that index would be 1. Otherwise, if object midpoint is not present, then the value would be 0. Conversely, the noobj variable I initialize at line #(5) will act as the inverse of obj, which the value would be 1 if there is no object midpoint present in the grid cell. Figure 12. What the target and prediction vector for each grid cell looks like. The target bounding box confidence is stored at index 20, whereas the predicted bounding box confidences are at index 20 and 25, each in their corresponding vectors [3]. Read more about this in my previous article at reference number [1]. Now let’s move on to Codeblock 5b, where we compute the bounding box error, which corresponds to the first and the second rows of the loss function. What we essentially do initially is to take the xywh values from the target tensor (indices 21, 22, 23, and 24). This can be done with a simple array slicing technique as shown at line #(1). Next, we do the same thing to the predicted tensor. However, remember that since our model generates two bounding boxes for each cell, we need to store their xywh values into two separate variables: pred_bbox0 and pred_bbox1 (#(2–3)). In Figure 12, the sliced indices are the ones referred to as x1 , y1 , w1 , h1 , and x2 , y2 , w2 , h2. Among the two bounding box predictions, we will only take the one that best approximates the target box. Hence, we need to compute the IoU between both predicted boxes and the target box using the code at line #(4) and #(5). The predicted bounding box that produces the highest IoU is selected using torch.max() at line #(6). The xywh values of the best bounding box prediction will then be stored in best_bbox, whereas the corresponding information of the box that has the lower IoU will be discarded (#(8)). At lines #(7) and #(8) itself we multiply both the actual xywh and the best predicted xywh with obj, which is how we apply the 1^obj mask. At this point we already have our x and y values ready to be processed with the sse function we initialized earlier. However, remember that we still need to apply square root to w and h beforehand, which I do at line #(9) and #(10) for the target and the best prediction vectors, respectively. One thing that you need to keep in mind at line #(10) is that we should take the absolute value of the numbers before applying torch.sqrt() just to prevent us from computing the square root of negative numbers. Not only that, it is also necessary to add a very small number (1e-6) to ensure that we won’t take the square root of 0, which will cause numerical instability. Still with the same line, we then multiply the resulting tensor with its original sign that we preserved earlier using torch.sign(). Finally, as we have applied torch.sqrt() to the w and h components of target_bbox and best_bbox, we can now pass both tensors to the sse() function as shown at line #(11). Note that the loss value stored in bbox_loss already includes both the error from the first and the second row of the YOLOv1 loss function. python

# Codeblock 5b
    target_bbox = target[..., 21:25]      #(1)

    pred_bbox0 = prediction[..., 21:25]   #(2)
    pred_bbox1 = prediction[..., 26:30]   #(3)

    iou_pred_bbox0 = intersection_over_union(pred_bbox0, target_bbox)  #(4)
    iou_pred_bbox1 = intersection_over_union(pred_bbox1, target_bbox)  #(5)

    iou_pred_bboxes = torch.cat([iou_pred_bbox0.unsqueeze(0),
                                 iou_pred_bbox1.unsqueeze(0)],
                                dim=0)

    best_iou, best_bbox_idx = torch.max(iou_pred_bboxes, dim=0)    #(6)

    target_bbox = obj * target_bbox                                #(7)
    best_bbox   = obj * (best_bbox_idx*pred_bbox1                  #(8)
                         + (1-best_bbox_idx)*pred_bbox0)

    target_bbox[..., 2:4] = torch.sqrt(target_bbox[..., 2:4])      #(9)
    best_bbox[..., 2:4]   = torch.sign(best_bbox[..., 2:4]) * torch.sqrt(torch.abs(best_bbox[..., 2:4]) + 1e-6)  #(10)

    bbox_loss = sse(          #(11)
        torch.flatten(target_bbox, end_dim=-2),
        torch.flatten(best_bbox, end_dim=-2)
    )

The next component we will implement is the object loss. Take a look at the Codeblock 5c below to see how I do that. python

# Codeblock 5c
    target_bbox_confidence = target[..., 20:21]      #(1)
    pred_bbox0_confidence = prediction[..., 20:21]   #(2)
    pred_bbox1_confidence = prediction[..., 25:26]   #(3)

    target_bbox_confidence = obj * target_bbox_confidence                   #(4)
    best_bbox_confidence   = obj * (best_bbox_idx*pred_bbox1_confidence     #(5)
                                    + (1-best_bbox_idx)*pred_bbox0_confidence)

    object_loss = sse(      #(6)
        torch.flatten(obj * target_bbox_confidence * best_iou),           #(7)
        torch.flatten(obj * best_bbox_confidence),
    )

What we initially do in the codeblock above is to take the value at index 20 from the target vector (#(1)). Meanwhile for the prediction vector, we need to take the values at indices 20 and 25 (#(2–3)), in which they correspond to the confidence scores of each of the two boxes generated by the model. You can go back to Figure 12 to verify this. Next, at line #(5) I take the confidence of the box prediction that has the higher IoU. The code at line #(4) is actually not necessary because obj and target_bbox_confidence are basically the same thing. You can verify this by checking the code at line #(4) in Codeblock 5a. I actually do this anyway for the sake of clarity because we essentially have both C and C_hat multiplied with 1^obj in the original equation (see Figure 6). Afterwards, we compute the SSE between the ground truth confidence (target_bbox_confidence) and the predicted confidence (best_bbox_confidence) (#(6)). It is important to note at line #(7) that we need to multiply the ground truth confidence with the IoU of the best bounding box prediction (best_iou). This is because the paper mentions that whenever there is an object midpoint within a cell, then we want the prediction confidence equal to that IoU score. — And this ends our discussion about the implementation of object loss. Now the Codeblock 5d below focuses on computing the no-object loss. The code is quite simple since here we reuse the target_bbox_confidence and the pred_bbox{0,1}_confidence we initialized in the previous codeblock. These variables need to be multiplied with the noobj mask before the SSE computation is performed. Note that the error made by the two predicted boxes needs to be summed, which is the reason why you see the addition operation at line #(1). python

# Codeblock 5d
    no_object_loss = sse(
        torch.flatten(noobj * target_bbox_confidence),
        torch.flatten(noobj * pred_bbox0_confidence),
    )

    no_object_loss += sse(          #(1)
        torch.flatten(noobj * target_bbox_confidence),
        torch.flatten(noobj * pred_bbox1_confidence),
    )

Lastly, we compute the classification loss using the Codeblock 5e below, in which this corresponds to the fifth row in the original equation. Remember that the original YOLOv1 was trained on the 20-class PASCAL VOC dataset. This is basically the reason that we take the first 20 indices from the target and prediction vectors (#(1–2)). Then, we can simply pass the two into the sse() function (#(3)). python

# Codeblock 5e
    target_class = target[..., :20]      #(1)
    pred_class = prediction[..., :20]    #(2)


    class_loss = sse(      #(3)
        torch.flatten(obj * target_class, end_dim=-2),
        torch.flatten(obj * pred_class, end_dim=-2),
    )

As we have already completed the five components of the YOLOv1 loss function, what we need to do now is to sum everything up using the following codeblock. Don’t forget to give weightings to bbox_loss and no_object_loss by multiplying them with their corresponding lambda parameters we initialized earlier (#(1–2)). python

# Codeblock 5f
    total_loss = (
        lambda_coord * bbox_loss           #(1)
        + object_loss
        + lambda_noobj * no_object_loss    #(2)
        + class_loss
    )

    return bbox_loss, object_loss, no_object_loss, class_loss, total_loss

···

Test Cases

In this section I am going to demonstrate how to run the loss() function we just created on several test cases. Now pay attention to the Figure 13 below as I’ll make the subsequent test cases based on this image. Figure 13. The image I use as the basis of the test cases [1].

Bounding Box Loss Example

The bbox_loss_test() function in Codeblock 6 below focuses on testing whether the bounding box loss is working properly. At the lines marked with #(1) and #(2) I initialize two all-zero tensors which I refer to as target and prediction. I set the size of these two tensors to 1×7×7×25 and 1×7×7×30, respectively, so that we can modify the elements intuitively. We assume that the image in Figure 13 as the ground truth, hence we need to store the bounding box information in the corresponding indices of the target tensor. The indexer [0] in the 0th axis indicates that we access the first (and the only one) image in the batch (#(3)). Next, [3,3] in the 1st and 2nd axes denotes the location of the grid cell where the object midpoint is located. We slice the tensor with [21:25] because we want to update the values contained in these indices with [0.4, 0.5, 2.4, 3.2], in which they correspond to the x , y , w and h values of the bounding box. The value at index 20, which is where the target bounding box confidence is stored, is set to 1 since the object midpoint is located within this cell (#(4)). Next, the index that corresponds to class cat (the class at index 7) also needs to be set to 1 (#(5)), just like how we create one-hot encoding label in a typical classification task. You can refer back to Figure 12 to verify that the class cat is indeed at the 7th index. python

# Codeblock 6
def bbox_loss_test():
    target = torch.zeros(BATCH_SIZE, S, S, (C+5))        #(1)
    prediction = torch.zeros(BATCH_SIZE, S, S, (C+B*5))  #(2)

    target[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.4, 3.2])    #(3)
    target[0, 3, 3, 20] = 1.0    #(4)
    target[0, 3, 3, 7] = 1.0     #(5)

    prediction[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.4, 3.2])       #(6)
    #prediction[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.8, 4.0])      #(7)
    #prediction[0, 3, 3, 21:25] = torch.tensor([0.3, 0.2, 3.2, 4.3])      #(8)

    target = target.reshape(BATCH_SIZE, S*S*(C+5))            #(9)
    prediction = prediction.reshape(BATCH_SIZE, S*S*(C+B*5))  #(10)

    bbox_loss = loss(target, prediction)[0]    #(11)

    return bbox_loss

bbox_loss_test()

You can see in the above codeblock that I prepared three test cases at line #(6–8), in which the one at line #(6) is a condition where the predicted bounding box midpoint and the object size matches exactly with the ground truth. In that particular case, our bbox_loss would be 1.8474e-13, which is an extremely small number. Remember that it does not return exactly 0 because of the 1e-6 we added during the IoU and the square root calculations. Meanwhile in the second test case, I assume that the midpoint prediction is correct, but the box size is a bit too large. If you try to run this, we will have our bbox_loss increase to 0.0600. Third, I further enlarge the bounding box prediction and also shift from the actual position. And in such a case, our bbox_loss gets even larger to 0.2385. By the way, it is important to remember that the loss function we defined earlier expects the target and prediction tensors to have the dimensions of 1×1225 and 1×1470, respectively. Hence, we need to reshape them (#(9–10)) accordingly before eventually computing the loss value (#(11)). markup

# Codeblock 6 OutputCase 1: tensor(1.8474e-13)Case 2: tensor(0.0600)Case 3: tensor(0.2385)

Object Loss Example

To check whether the object loss is correct, we need to focus on the value at index 20. What we do initially in the object_loss_test() function below is similar to the previous one, namely creating the target and prediction tensors (#(1–2)) and initializing ground truth vector for cell (3, 3) (#(3–5)). Here we assume that the bounding box prediction perfectly aligns with the actual bounding box (#(6)). python

# Codeblock 7
def object_loss_test():
    target = torch.zeros(BATCH_SIZE, S, S, (C+5))        #(1)
    prediction = torch.zeros(BATCH_SIZE, S, S, (C+B*5))  #(2)

    target[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.4, 3.2])      #(3)
    target[0, 3, 3, 20] = 1.0    #(4)
    target[0, 3, 3, 7] = 1.0     #(5)

    prediction[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.4, 3.2])  #(6)

    prediction[0, 3, 3, 20] = 1.0    #(7)
    #prediction[0, 3, 3, 20] = 0.9   #(8)
    #prediction[0, 3, 3, 20] = 0.6   #(9)

    target = target.reshape(BATCH_SIZE, S*S*(C+5))
    prediction = prediction.reshape(BATCH_SIZE, S*S*(C+B*5))

    object_loss = loss(target, prediction)[1]

    return object_loss

object_loss_test()

I’ve set up three test cases specifically for the object loss. The first one is the case when the model is perfectly confident that there is a box midpoint within the cell, or in other words, this is a condition where the confidence is 1 (#(7)). If you try to run this, the resulting object loss would be 1.4211e-14, which is again a value very close to zero. You can also see in the resulting output below that the object loss increases to 0.0100 and 0.1600 as we decrease the predicted confidence to 0.9 and 0.6 (#(8–9)), which is exactly what we expected. markup

# Codeblock 7 OutputCase 1: tensor(1.4211e-14)Case 2: tensor(0.0100)Case 3: tensor(0.1600)

Classification Loss Example

Talking about the classification loss , let’s now see if our loss function can really penalize misclassifications. Just like the previous ones, in the Codeblock 8 below I prepared three test cases, in which the first one is the condition where the model correctly gives perfect confidence to class cat and at the same time leaving all other class probabilities to 0 (#(1)). If you try to run this, the resulting classification loss would be exactly 0. Next, if you decrease the confidence of predicting cat to 0.9 while slightly increasing the confidence for class chair (index 8) to 0.1 as shown at line #(2), we will get our classification loss to increase to 0.0200. The loss value gets even larger to 1.2800 when I assume that the model misclassifies cat as chair by assigning a very low confidence for the cat (0.2) and a high confidence for the chair (0.8) (#(3)). This essentially indicates that our loss function implementation is shown to be able to measure errors in classification properly. python

# Codeblock 8
def class_loss_test():
    target = torch.zeros(BATCH_SIZE, S, S, (C+5))
    prediction = torch.zeros(BATCH_SIZE, S, S, (C+B*5))

    target[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.4, 3.2])
    target[0, 3, 3, 20] = 1.0
    target[0, 3, 3, 7] = 1.0

    prediction[0, 3, 3, 21:25] = torch.tensor([0.4, 0.5, 2.4, 3.2])

    prediction[0, 3, 3, 7] = 1.0    #(1)
    #prediction[0, 3, 3, 7:9] = torch.tensor([0.9, 0.1])    #(2)
    #prediction[0, 3, 3, 7:9] = torch.tensor([0.2, 0.8])    #(3)

    target = target.reshape(BATCH_SIZE, S*S*(C+5))
    prediction = prediction.reshape(BATCH_SIZE, S*S*(C+B*5))

    class_loss = loss(target, prediction)[3]

    return class_loss

class_loss_test()

markup

# Codeblock 8 OutputCase 1: tensor(0.)Case 2: tensor(0.0200)Case 3: tensor(1.2800)

No Object Loss Example

Now in order to test our implementation on the no-object loss part, we are going to examine the cell that does not contain any object midpoint, which here I come up with the grid cell at coordinate (1, 1). Since the object in the image is only the one located at grid cell (3, 3), the target bounding box confidence for coordinate (1, 1) should be set to 0, as shown at line #(1) in Codeblock 9. In fact, this step is not quite necessary because we already set the tensors to be all-zero in the first place — but I do it anyway for clarity. Remember that this no-object loss part will be activated only when the target bounding box confidence is 0 like this. Otherwise, whenever the target box confidence is 1 (i.e., there is an object midpoint within the cell), then the no-object loss part will always return 0. Here I prepared two test cases, in which the first one is when the values at indices 20 and 25 of the prediction tensor are both 0 as written at line #(2) and #(3), namely when our YOLOv1 model correctly predicts that there is no bounding box midpoint within the cell. The loss value will increase when we use the code at line #(4) and #(5) instead, in which it simulates the model somewhat thinks that there should be objects in there while it is actually not. You can see in the resulting output below that the loss value now increases to 0.1300, which is expected. python

# Codeblock 9
def no_object_loss_test():
    target = torch.zeros(BATCH_SIZE, S, S, (C+5))
    prediction = torch.zeros(BATCH_SIZE, S, S, (C+B*5))

    target[0, 1, 1, 20] = 0.0        #(1)

    prediction[0, 1, 1, 20] = 0.0    #(2)
    prediction[0, 1, 1, 25] = 0.0    #(3)

    #prediction[0, 1, 1, 20] = 0.2   #(4)
    #prediction[0, 1, 1, 25] = 0.3   #(5)

    target = target.reshape(BATCH_SIZE, S*S*(C+5))
    prediction = prediction.reshape(BATCH_SIZE, S*S*(C+B*5))

    no_object_loss = loss(target, prediction)[2]

    return no_object_loss

no_object_loss_test()

markup

# Codeblock 9 OutputCase 1: tensor(0.)Case 2: tensor(0.1300)

···

Ending

And well, I think that’s pretty much everything about the loss function of the YOLOv1 model. We have completely discussed the formal mathematical expression of the loss function, implemented it from scratch, and performed testing on each of the components. Thank you very much for reading, I hope you learn something new from this article. Please let me know if you spot any mistakes in my explanation or in the code. See ya in my next article! By the way you can also find the code in my GitHub repository. Click the link at reference number [4]. ···

References

[1] Muhammad Ardi. YOLOv1 Paper Walkthrough: The Day YOLO First Saw the World. Towards Data Science. https://towardsdatascience.com/yolov1-paper-walkthrough-the-day-yolo-first-saw-the-world/ [Accessed December 18, 2025]. [2] Joseph Redmon et al. You Only Look Once: Unified, Real-Time Object Detection. Arxiv. https://arxiv.org/pdf/1506.02640 [Accessed July 25, 2024]. [3] Image created originally by author. [4] MuhammadArdiPutra. Regression For All — YOLOv1 Loss Function. GitHub. https://github.com/MuhammadArdiPutra/medium_articles/blob/main/Regression For All - YOLOv1 Loss Function.ipynb [Accessed July 25, 2024].

Register Now to Continue Reading

Unlock Towards Data Science with a Free Account

All articles on Towards Data Science are available to registered users. Create a free account today to access this article and thousands more. Register for freeSign in to your account

Written By

Muhammad Ardi Putra

Deep learning storyteller See all from Muhammad Ardi Putra Editor's PicksDeep LearningMachine LearningNeural NetworkPythonYolo Share This Article

Towards Data Science is a community publication. Submit your insights to reach our global audience and earn through the TDS Author Payment Program. Write for TDS

Related Articles

How Social Platforms Can Prevent Mental Illnesses Using Deep Learning

Machine Learning Recent university research out of Korea suggests that they can. But should they? Andrew Quan July 23, 202011 min read

The Proper Way to Make Calls to ChatGPT API

Artificial Intelligence How to make reliable calls to ChatGPT API to build robust applications Lucas Oliveira July 15, 202312 min read

Master Semantic Search at Scale: Index Millions of Documents with Lightning-Fast Inference Times...

Artificial Intelligence Dive into an end-to-end demo of a high-performance semantic search engine leveraging GPU acceleration, efficient indexing techniques, and... Luís Roque March 31, 202316 min read

5 Ways You Are Sabotaging AI As A Leader

Artificial Intelligence The key mistakes that are derailing AI potential and burning investment Kate Minogue August 15, 20248 min read

Understanding the Effect of Bagging on Variance and Bias visually

Artificial Intelligence Giving an intuition on why Bagging algorithms actually work and displaying the effects of them in an easy and approachable way. Robert Kübler December 21, 201915 min read

Unsupervised Multilingual Text Classification With Zero-Shot Approach

Artificial Intelligence This article is a comprehensive overview of using Hugging Face Transformers🤗 to perform zero-shot classification Zoumana Keita February 7, 20222 min read

Threat Modeling A.I. and Machine learning systems

Artificial Intelligence Use Threat modeling to identity AI and ML risks Taimur Ijlal September 9, 20224 min read

6 Best Startup Choices with Artificial Intelligence

Artificial Intelligence Want to start a successful startup with AI? Bharath K September 4, 20206 min read

Follow AI Footpaths

Artificial Intelligence Shadow AI and the desire paths of modern work Aleksandra Osipova March 16, 20266 min read

Your home for data science and AI. The world's leading publication for data science, data analytics, data engineering, machine learning, and artificial intelligence professionals. Subscribe to Our NewsletterWrite For TDS•About•Advertise•Privacy Policy•Terms of Use © Insight Media Group, LLC 2026•The New Stack•roadmap.sh•Creator Network

Recommended Articles

Close
